Rahmen:
- Alloy Frame
- Integrated Suspension Technology
- Virtual 4 Link kinematic / Adjustable head angle
- Syncros Cable Integration System
- Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
- Bosch PowerMore Ready
Federweg:
- Front: 170mm / Rear: 150mm
Gabel:
- RockShox Domain R Air / E-Bike
- Reb Adj. / QR Axle 15x110mm axle
- 44mm offset / tapered steerer
- 170mm travel
Dämpfer:
- RockShox SuperDeluxe Piggy Back Trunnion
- Reb Adj. / Large Air volume
- Travel 150-100-Climb / T185X55mm
Antriebseinheit:

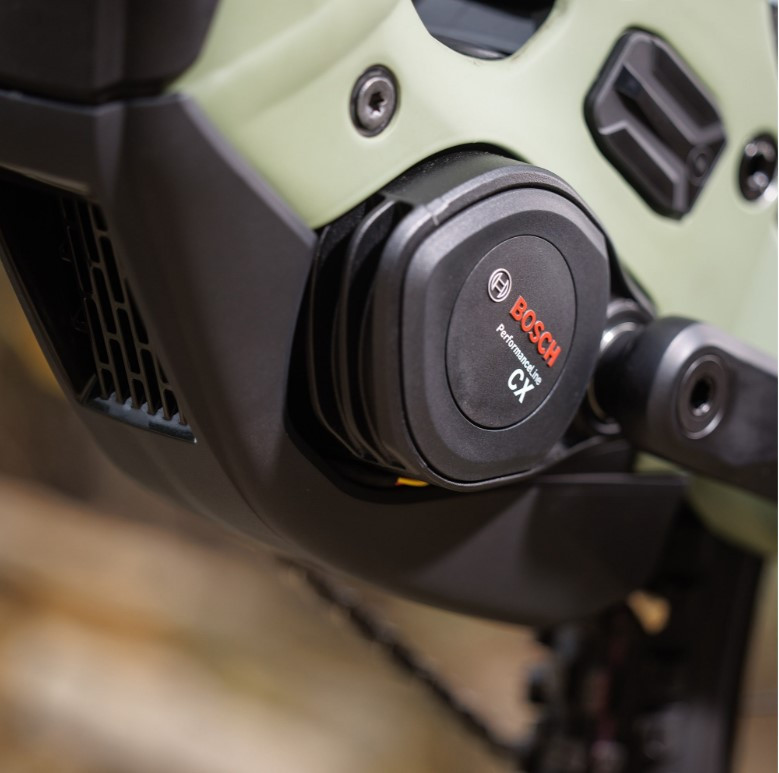

- Bosch Performance CX
- EU: 25kmh / INT: 20mph
Batterie:
- PowerTube 800Wh
Display:
- Bosch System Controller
- Mini Remote
Ladegerät:
- 4A Charger
Schaltwerk:
- Shimano Deore RD-M6100 SGS
- Shadow Plus / 12 Speed
Schalthebel:
- Shimano Deore SL-M6100-IR / Rapidfire Plus
Kurbelsatz:
- FSA Alloy
Kettenführung:
- ethirteen / espec Slider
Kettenblatt:
- FSA 12Speed 34T chainring
Kette:
- Shimano CN-M6100
Kassette:
- Shimano CS-M6100 / 10-51
Bremsen:
- Shimano Deore M6120 4-Piston Disc
Bremsscheibe:
- Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm
Lenker:
- Syncros Hixon 2.0 Alloy 6061
- Size S & M 15mm rise / Size L & XL 25mm rise
- Back sweep 8° / 780mm
- Syncros Endurance lock-on grips
Vorbau:
- Syncros AM 2.0
- Syncros Cable Integration System
- 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Sattelstütze:
- Syncros Duncan Dropper Post 2.5
- 31.6mm
- S size 125mm / M size 150mm / L size 170mm / XL size 200mm
Sattel:
- Syncros Tofino-E 2.5 Regular
Steuersatz:
- Syncros - Acros Angle adjust & Cable Routing HS System
- +-0.6° head angle adjustment
- ZS56/28.6 – ZS56/40 MTB
Vorderradnabe:
- Formula CL-811 / 15x110mm
Hinterradnabe:
- Formula ECT-148M / Boost 148x12mm
Speichen:
- Stainless Black
Felgen:
- Syncros MD30 / 32H / 30mm / Pin Joint
- Tubeless ready
Vorderreifen:
- Schwalbe Magic Mary 29x2.5"
- SuperGravity / PSF / Ultra Soft
- Tubeless ready
- 120TPI Foldable Bead
Hinterreifen:
- Schwalbe Explore 29x2.5"
- SuperGravity / PSF / Soft
- Tubeless ready
- 120TPI Foldable Bead
Beleuchtung:

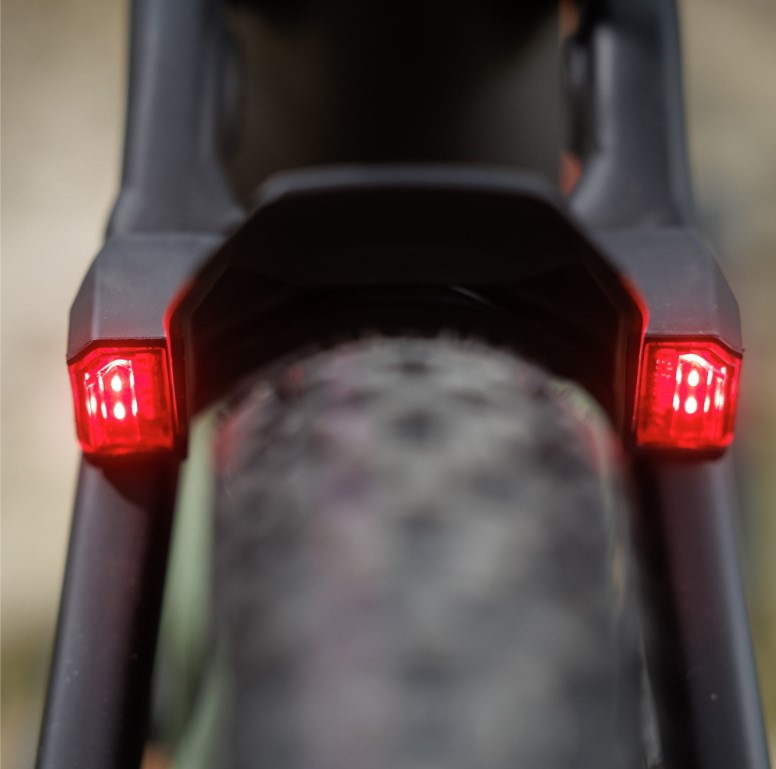

- Syncros integrated rear fender light
- Front Light Cable pre-installed
Gewicht in Kg (ca.):
- 25.9
Gewicht in Lbs (ca.):
- 57.1
Max. Systemgewicht:
- 128kg
Das Gesamtgewicht umfasst das Bike, den Fahrer, die Ausrüstung und eventuelles weiteres Gepäck.
