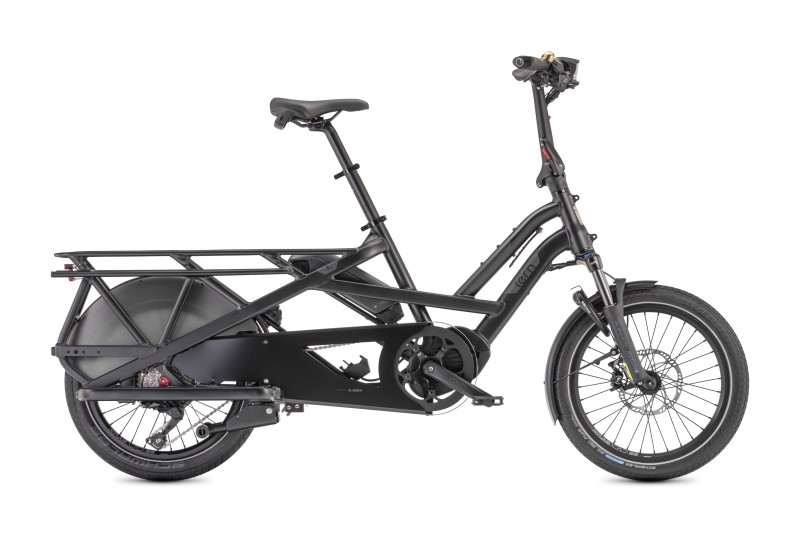

GSD S10 Cargo Line, 500Wh Shimano 1x10, Satin Schwarz
| Farbe | Schwarz |
| Spezial-Farbe | Satin Black |
| Grösse | One size |
| Material/Werkstoff | 6061-Aluminium |
| Einsatzbereich | Cargo / Familie |
| Geschlecht | uni sex |
| Dimension | 176 x 40.5 x 87 cm |
| Federweg | 70mm |
| Gänge | 10 |
| Innenlager | Motor integrated |
| Rahmen | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
| Gabel | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, , EFBE approved: 200 kg |
| Radgrösse | 20" |
| Radsatz | Tern Atlas, heavy duty cargo wheel |
| Kurbelgarnitur | Tern GSD custom, forged 6061-AL DH crankarm |
| Schaltwerk | Shimano Deore Shadow+ |
| Umwerfer | n/a |
| Schalthebel | Shimano Alivio, 1 x 9 spd |
| Kassette | Shimano 11-36T, 10 spd |
| Kette | 9 spd, DHT for eBike, GST corrosion resistant |
| Power | 500 Wh: 50-100 km |
| Bremse | Magura MT5, 4-piston hydraulic disc, 180 mm rotor |
| Bremsscheiben | 180mm / 180mm |
| INCH | 20" |
| Kettenführung/Kettenschutz | Tern Custom |
| Vorbau | Tern Andros (G2), adjustable, forged construction |
| Lenker | Tern Sweep, 6061-AL, Tern Andros adapted |
| Steuersatz | Tern Flux Pro Taper, 1.5" |
| Sattelstütze | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Sattel | Tern GSD by Velo |
| Bereifung | F: Schwalbe Big Ben Plus, 55-406, Green Guard R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard |
| Vorderradnabe | Tern Atlas, Boost Thru-Axle, Cargo-opti design |
| Hinterradnabe | Tern Atlas, Boost Thru-Axle, Syntace X-12 standard |
| Pedalen | Urban with non-slip surface, sealed bearings |
| Schutzblech | SplashGuard, AL6061, w/ Side Skirt |
| Ebike | true |
| Gepäckträger | Atlas H rack, Atlas rack interface at dropout |
| Seitenständer | Tern LockStand, w/ remote unlock |
| Frontlicht | Tern Valo, 190 lumens |
| Rücklicht | Tern Brake Light, Always on brake light |
| Schloss | ABUS, keyed-alike with Bosch battery |
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph |
| Batterie | Bosch PowerPack 500 |
| Display | Bosch Purion |
| Max. Systemgewicht | 200.00000000 |
| Felge | Tern Atlas, ultra wide 36mm, dual reinforced joint |
| Griffe/Lenkerband | Ergon |
| Gewicht | 33.58 |
| Gewicht-Masseinheit | Kilogramm |
