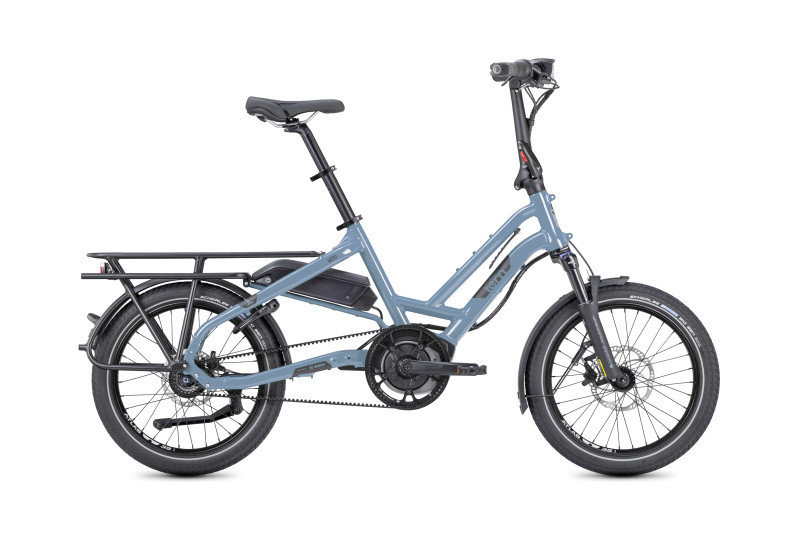

HSD S8i Active Line Plus500Wh Shimano Nexus 8 , Magura MT 4, Tundra
| Farbe | Blau |
| Spezial-Farbe | Tundra |
| Grösse | One size |
| Material/Werkstoff | 6061-Aluminium |
| Einsatzbereich | Cargo / Allday / Familie / Adventure |
| Geschlecht | uni sex |
| Dimension | 163 x 40.5 x 86 cm |
| Federweg | 70mm |
| Gänge | 8 |
| Innenlager | Motor integrated |
| Rahmen | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg |
| Gabel | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, , EFBE approved: 170 kg |
| Radgrösse | 20" |
| Radsatz | Tern Atlas H, cargo wheel |
| Kurbelgarnitur | Tern HSD custom, Gates CDX CNC machined beltring |
| Schaltwerk | n/a |
| Umwerfer | n/a |
| Schalthebel | Shimano Nexus 8 |
| Kassette | Gates CDX, precision CNC machined cog |
| Kette | Gates Carbon Drive CDX belt |
| Power | 500 Wh: 50-100 km |
| Bremse | Magura MT4, hydraulic disc, 180 mm rotor |
| Bremsscheiben | 180mm / 160mm |
| INCH | 20" |
| Kettenführung/Kettenschutz | Gates integrated |
| Vorbau | Tern Andros (G2), adjustable, forged construction |
| Lenker | Tern Sweep, 6061-AL, Tern Andros adapted |
| Steuersatz | Tern Flux Pro Taper, 1.5" |
| Sattelstütze | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Sattel | Tern HSD |
| Bereifung | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Vorderradnabe | Novatec, Thru-axle, sealed bearings |
| Hinterradnabe | Shimano Nexus 8 |
| Pedalen | Urban with non-slip surface |
| Schutzblech | SKS, stainless hardware |
| Gepäckträger | Atlas H rack, Atlas Rack Mount, 6 point mounting |
| Seitenständer | Ursus, rear mount |
| Frontlicht | Tern Valo, 190 lumens |
| Rücklicht | Herrmans H-Trace, for eBike |
| Schloss | ABUS, keyed-alike with Bosch battery |
| Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph |
| Batterie | Bosch PowerPack 500 |
| Display | Bosch Purion |
| Max. Systemgewicht | 170.00000000 |
| Felge | Tern Atlas H, wide 35 mm |
| Griffe/Lenkerband | Ergon |
| Gewicht | 25.4 |
| Gewicht-Masseinheit | Kilogramm |
