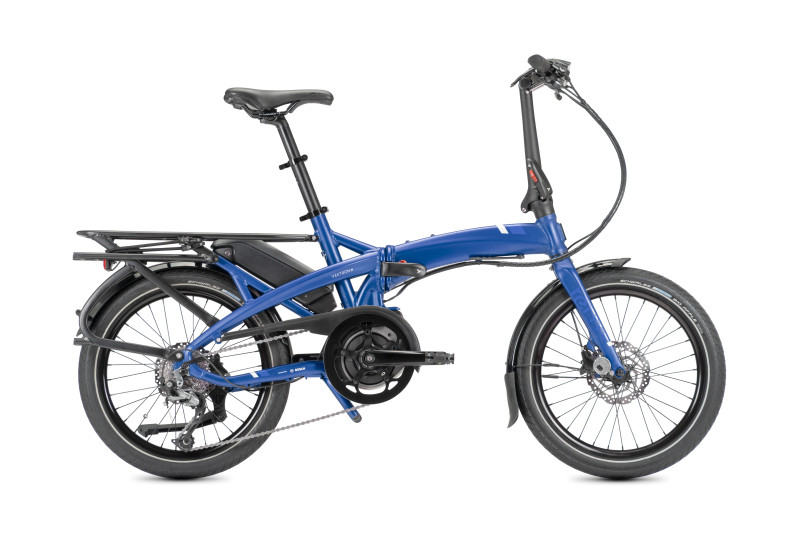

Vektron Q9 Active L.Plus,500Wh Blau, Shimano Acera 9 Speed
| Farbe | Blau |
| Spezial-Farbe | Satin Blue/Blue/Silver |
| Grösse | One size |
| Material/Werkstoff | 6061-Aluminium |
| Einsatzbereich | Camping, Commuter |
| Geschlecht | uni sex |
| Dimension | 41 x 86 x 68 cm |
| Federweg | 0 |
| Gänge | 9 |
| Innenlager | Motor integrated |
| Rahmen | Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies |
| Gabel | Tern Tarsus, 6061-AL, hydroformed |
| Radgrösse | 20" |
| Radsatz | - |
| Kurbelgarnitur | Shimano Alivio Shadow |
| Schaltwerk | n/a |
| Umwerfer | n/a |
| Schalthebel | Shimano Alivio, 1 x 9 spd |
| Kassette | Shimano 11-32T, 9 spd |
| Kette | 9 spd, DHT for eBike, GST corrosion resistant |
| Power | 500 Wh: 65 -130 km |
| Bremse | Shimano, hydraulic disc |
| Bremsscheiben | 180mm / 160mm |
| INCH | 20" |
| Kettenführung/Kettenschutz | SKS Chainblade |
| Vorbau | Tern Andros (G2), adjustable, forged construction |
| Lenker | Flat bar, 6061-AL, Tern Andros adapted |
| Steuersatz | Tern Flux, cart. bearings |
| Sattelstütze | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Sattel | Tern Porter+ by Velo |
| Bereifung | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Vorderradnabe | Shimano disc |
| Hinterradnabe | Shimano disc |
| Pedalen | MKS EZY |
| Schutzblech | SplashGuard, stainless hardware |
| Gepäckträger | Atlas Rack, integrated 8 point mounting |
| Seitenständer | URSUS, rear mount |
| Frontlicht | Tern Valo, 190 lumens |
| Rücklicht | Herrmans H-Trace, for eBike |
| Schloss | 0 |
| Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph |
| Batterie | Bosch PowerPack 500 |
| Display | Bosch Purion |
| Max. Systemgewicht | 125.00000000 |
| Felge | Kinetix Comp, for disc |
| Griffe/Lenkerband | Velo ergonomic, lock-on |
| Gewicht | 21.9 |
| Gewicht-Masseinheit | Kilogramm |
